Urovo DT50X Device Setup



Follow the below instructions to configure you Urovo DT50X device to work with the TransVirtual mobile app for scanning.

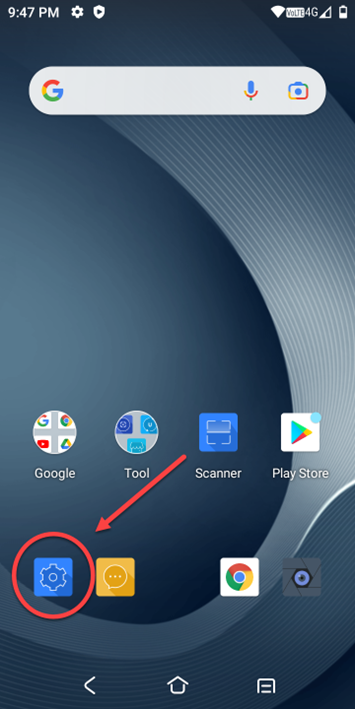

Step 1

Enter the devices settings menu

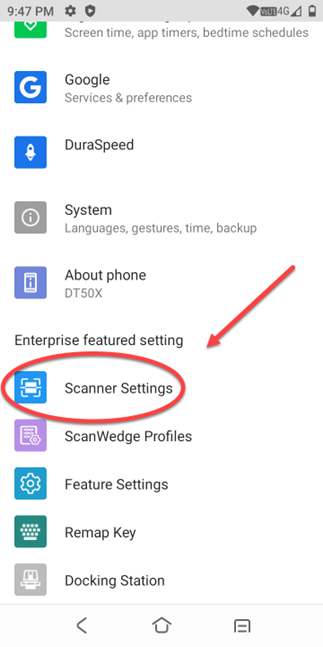

Step 2

Scroll down and tap on the “Scanner Settings” menu item.

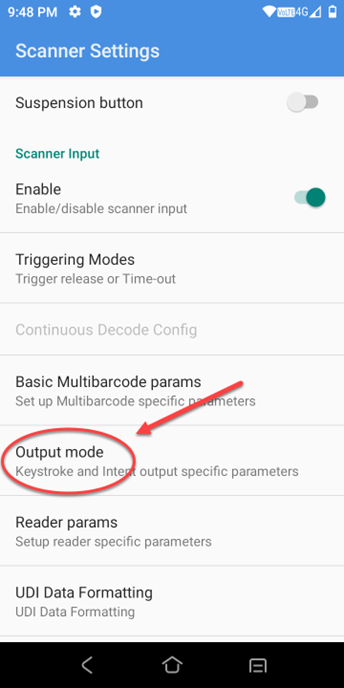

Step 3

Scroll down and tap on the “Output Mode” menu item.

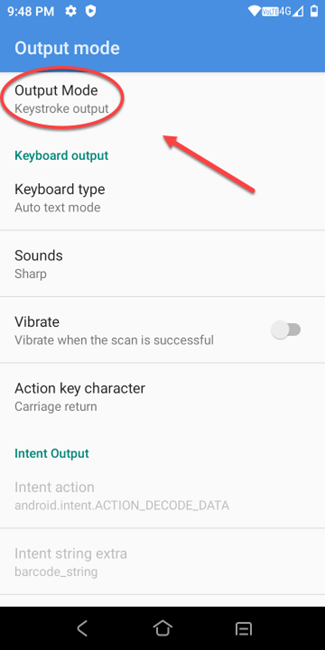

Step 4

At the top, tap on the “Output Mode” menu item where is currently says “Keystroke Output” underneath.

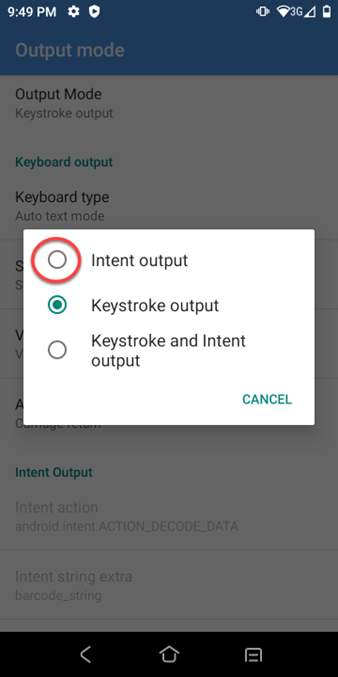

Step 5

This will bring up a window with three options, tap on the circle next to “Intent Output”.

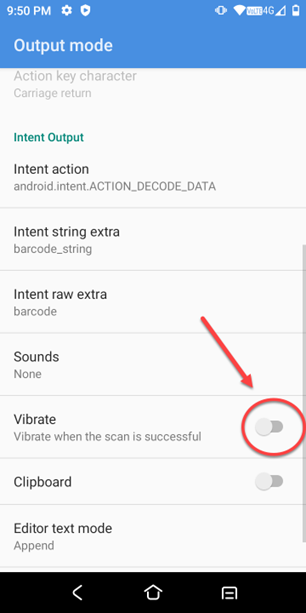

Step 6 (Optional)

You can then scroll down and an option appears to Vibrate when the scan is successful. Tap on the slider next to “Vibrate” to enable.



Step 7

All configuration is complete, back out of the settings menu, install the TransVirtual app and your device will be ready to use.
