Unknown Scans - Export

Unknown Scans - Export

In Transvirtual, there is the ability to create an export rule for unknown scans. This rule sends out an update information about a consignment, to a location via FTP, Email, SMS etc. This page can be found under Import/Export > Data Export > Unknown Scans.
This article will run through a common setup that most Transvirtual users implement, sending Unknown Scans Notification.

Create/Add a New Rule

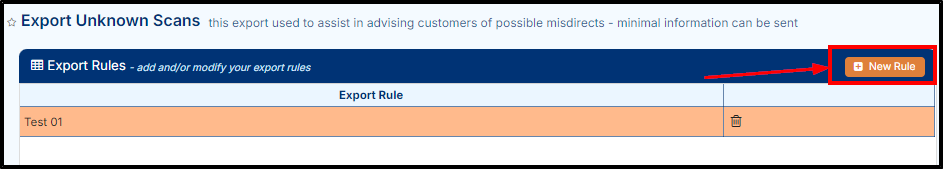

1. To create a new rule, go to the Export Consignments Status Updates page, where you will see a similar screen as shown below.


2. On the Export Unknown Scans page, click on the "New Rule" button as shown above. A pop up of 'Create a new export rule' will display, as shown below.


3. Manually enter the Rule Name in the rule name field and select the Export Framework with the help of drop-down button, then click on the Create as shown above.
Info
In this example we are going to select the "Unknown Scans Notification to Customer" in Rule name and SMS in Export Framework.

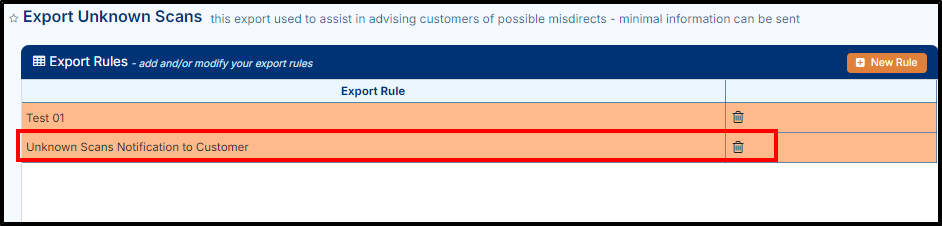

4. Once the rule is created, it will be added to the Export Rules list and highlighted in orange color as shown below.

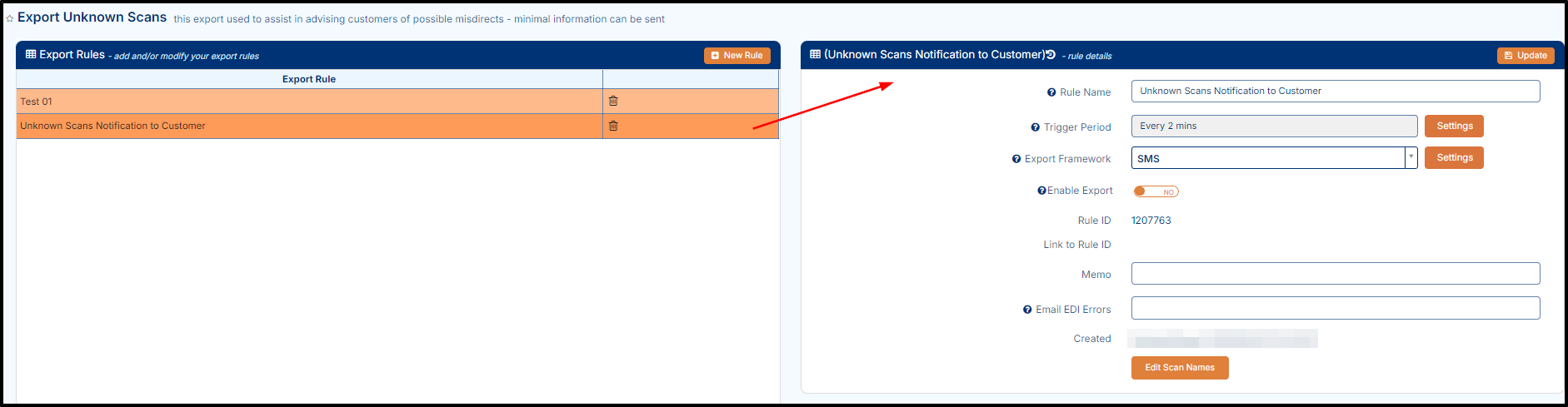

5. Now, click on the newly added rule, the details of this rule will appear on the right side of the page as shown below.

6. In the rule detail section, you can add/update the detail of the rules as described in the Update/Edit the Rule paragraph.
7. Before updating the rule, first set the data filter as describe below.

Data Filter

The data filter is the driving force behind when the rule will and won't apply to a consignment.
1. To see the data filter tab, navigate to the bottom of the page where you'll find the Data Filter section.

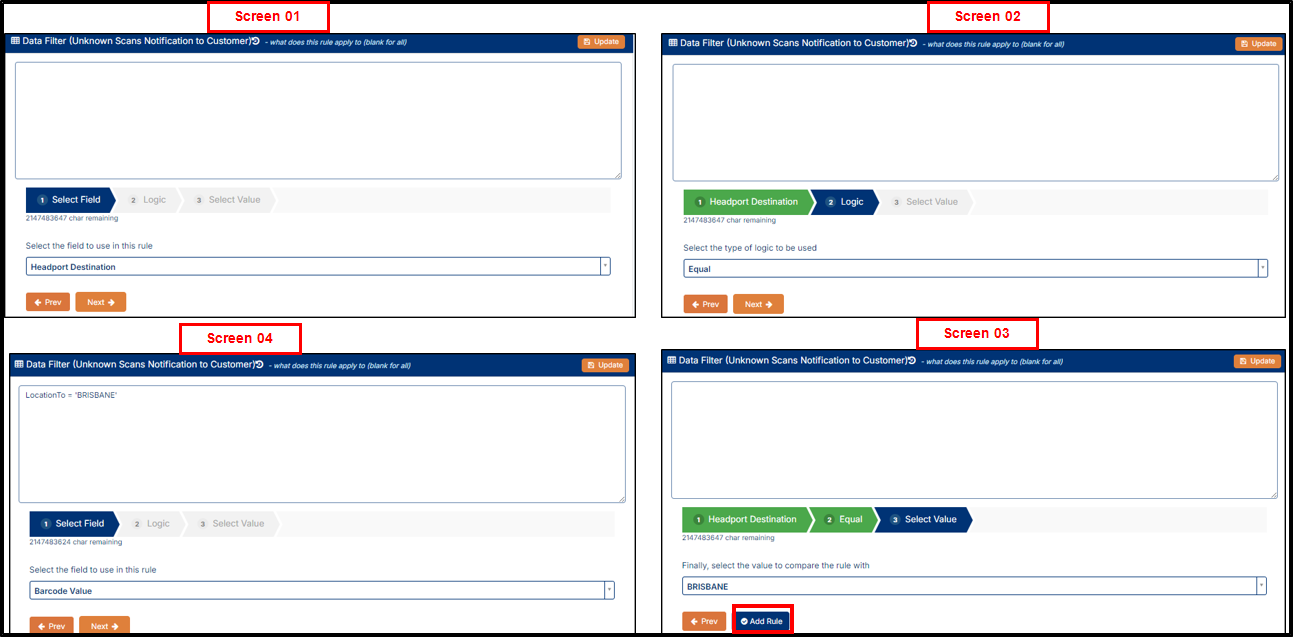

2. On data filter section, select the details for Select Field (Screen 01), Logic (Screen 02) and Select Value (Screen 03) and then click on Add Rule, the rule detail will display on Data Filter screen (Screen 04) as shown below.

Notes
In this example, we are going to select Headport Destination in Select Field, Equal in Logic and Brisbane in Select Value field.

Update/Edit the Rule

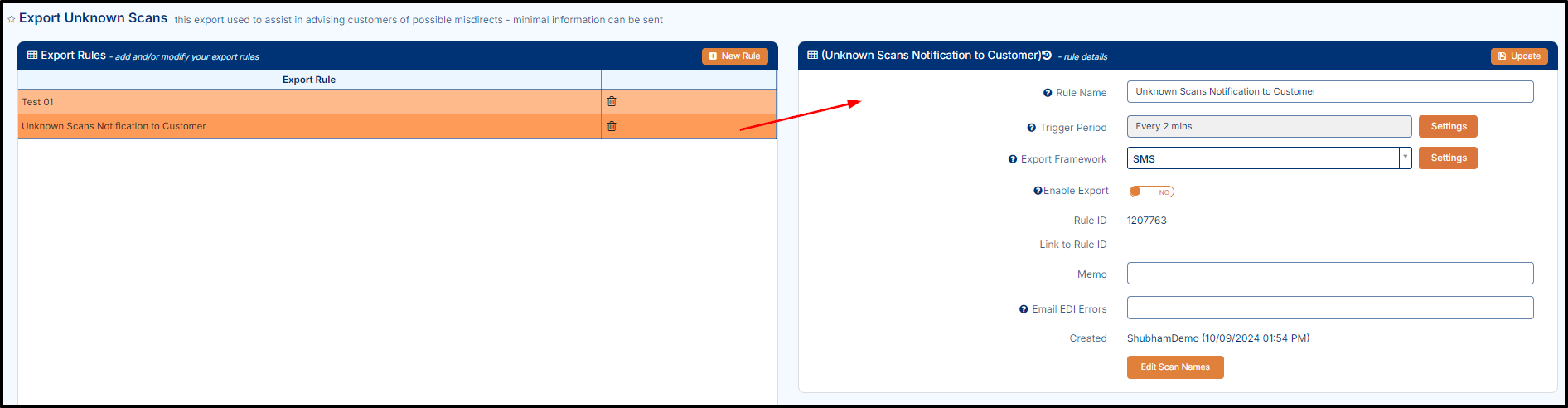

1. To update/edit the rule details, first click on the applicable rule, and the details of that rule will display on the right side of the screen as shown below.

2. You can update the details as follows:
      a. Rule Name: This is the name given to rule. It can be changed at any point but should reflect what the rule will be used for or does. In this example will keep the rule name as it was set during the initial creation.
      b. Trigger Period: This determines how often this EDI rule will work for new files to export. In this example, it will be set as Every 2 mins but if required you can update it also by clicking on Settings button.
      c. Export Framework: This specify how the information will be exported from Transvirtual. In this example SMS is selected. You can update the export framework setting by clicking on the Settings, next to this field.
Info
You have the ability to customize the FTP, E-mail, Webservice, Printer, Account Package and Email using the Settings button.
Export Framework Setting

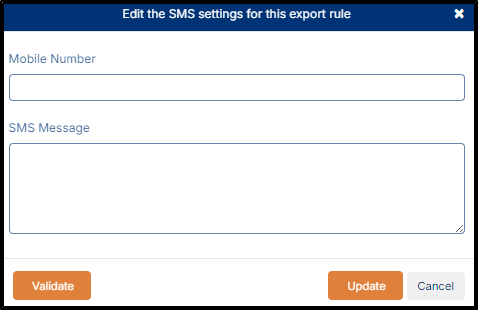

            i. Click on the Export Framework setting, a pop-up to Edit the email settings for this export rule will display.


        ii. Fill the details i.e., Mobile number and manually enter the message which you want to share with this EDI rule.
Info
The Validate button at the bottom of this window can be used to preview what the SMS will look like.
            iii. Once done, click on Update to save the changes.

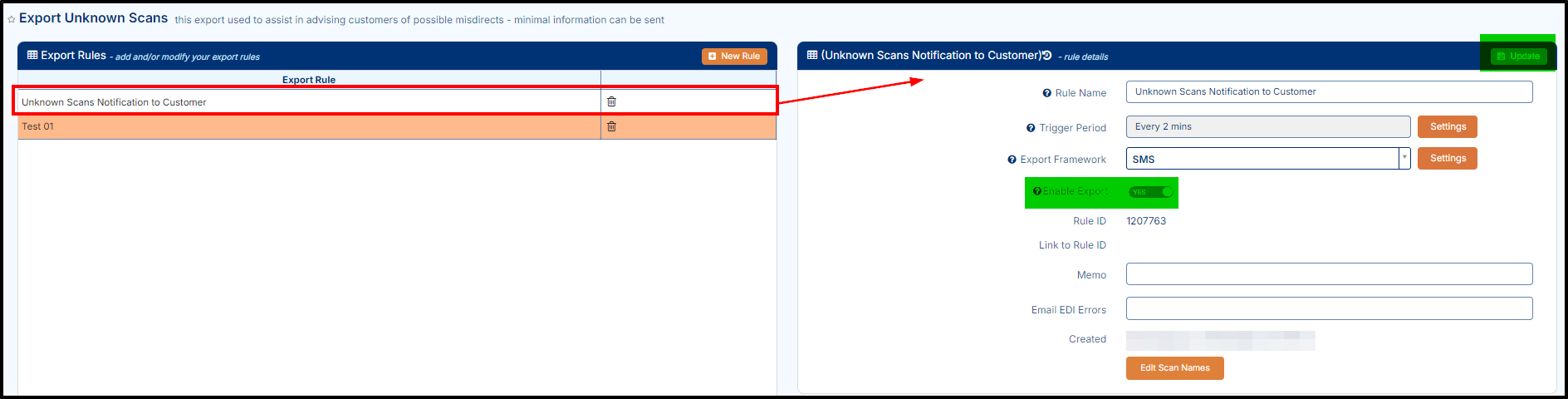

    f. Enable Export: To enable new rule, click on the toggle in the Yes position, and then click on the Update button to save the changes. Once completed, the color of the rule will change to White which means that this rule is enabled.

Info
The Memo and Email EDI Errors are not mandatory fields, so in this example we leave them blank.

Delete the Rule

1. If you want to delete the rule, simply click on the delete icon, a confirm dialog will pop-up, click on Yes button, the rule will be deleted from database as shown below.
